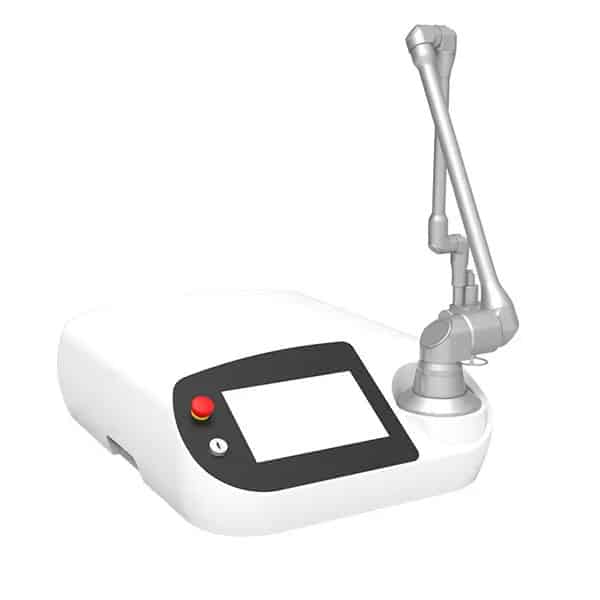

Glass tube fractional CO2 laser machine

Treatment: , , ,

Glass tube fractional co2 laser machine is using a glass tube to excite the laser, it can treat acne scars, wrinkles, vaginal, moles, stretch marks, pores and warts. Glass tube co2 laser has also a good results on skin resurfacing and anti-aging. Although the glass tube is not as good as RF tube, glass tube co2 laser machine is much cheaper and suitable for those spas and clinics which do not have to much budget.

  • Portable design pearl white fractional CO2 laser, suitable for spa and home use
  • RF(radio frequency) tube and glass tube CO2 optional
  • 40W coherent laser, high efficiency
  • Fractional, ultra cutting and vaginal tightening, 3 working modes
  • Long term results and high ROI
  • Unique design, OEM/ODM requirements accepted
  • Professional factory, support selling only kits (without machine case) for foreigner factories.

Contact Us
image-6 Download

We can offer the OEM/ODM services of our products. The product can be customized according to your personalized requirements, including the brand, label, painting colors, and packing box. Please offer your design documents or tell us your ideas and our R&D team will do the rest.

How Does Glass Tube Fractional CO2 Laser Machine Works?

The glass tube fractional laser excite the lasers from the glass tube and deliver it to laser arms finally works on the target area.By using 10600nm wavelength which is working on the water in the treatment tissues, gives short-pulsed light energy (known as ultra pulse) that is continuously blasted through a scanning pattern in order to remove thin, outer layers of damaged skin. Once the dead skin cells are removed, the procedure activates the production of multiple microthermal zones that reaches deep into the skin.

Product name Glass tube fractional co2 laser laser
Technology 10600nm CO2 laser
Display 8.4 inches  true color touch screen
Laser arms Korea import 7 joint laser arms
Wavelength 10600nm
Spot size 0.2mm
Scan area 20mm*20mm
Laser tube Glass tube
Power 40W
Voltage 100V-240V, 50Hz/60Hz
Packing size 45cm * 42cm * 56cm
Gross weight 39KG

Spare parts List

NO. SPARE PARTS Quantity (pcs)
1 Host 1

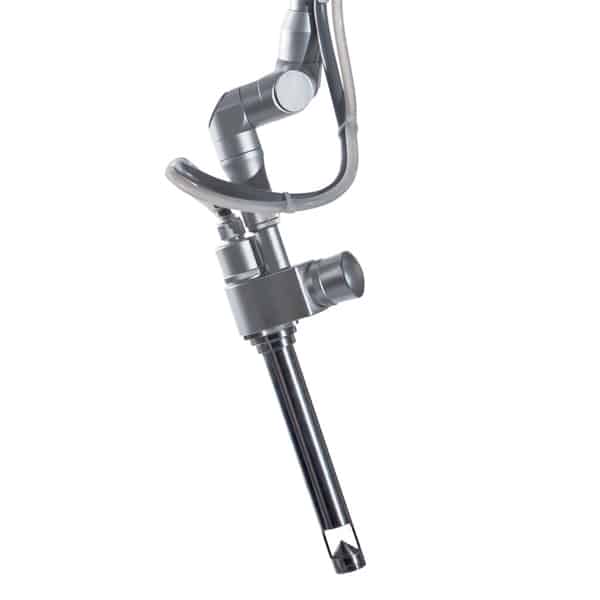

2 Laser arms 1

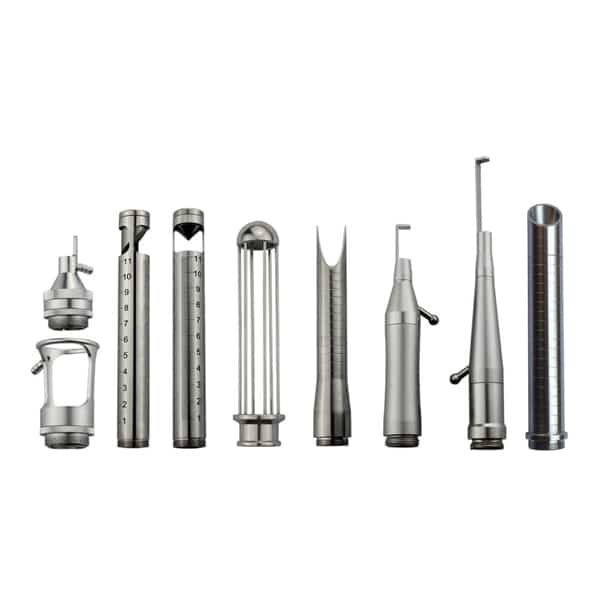

3 Treatment head 5
4 Switch 2
5 Handles bracket 1
6 Operator goggle 1
8 Patient goggle 1
9 Power supply line 1
10 User manual 1
11 Foot pedal 1
12 Fuse 3
13 “O” type sealing 8
14 Screws 8

Application

  • Remove acne scars
  • Remove stretch marks
  • Remove fine lines and improve the skin conditions
  • Improve pores and remove pigmentation
  • Vaginal tightening and rejuvenation from inner side to outside

The 10600nm glass tube Fractional laser uses a carbon dioxide tube to improve the effects of the treatment. This tube has a long life time, stability and advantage of precise treatment. Glass tube CO2 laser machine could treat all the facial medical problems as well as improving the vaginal conditions.

Glass is naturally more fragile than metal, and the risk of damage during shipment and installation is greater. The largest failure concern with glass tubes is that the DC-excitation process bombards a tubeu2019s optics and electrodes with ions, which increases the chance of deterioration over time.

Laser tubeLifetimeEnergyTransportPrice
Glass tubeShortLess strongerMetal material and not fragileCheap
RF metal tubeLongMuch strongerfragileMore expensive

Yes, glass tube fractional CO2 laser machine works even though it is not as good as RF tube. But glass tube could also provide a safe and effective results on skin resurfacing with a cheaper cost.

Generally speaking, one or two treatments will be sufficient to treat surface irregularities, fine lines, and discoloration. Generally, most people would require between 4-5 sessions spaced at 4-6 weeks intervals.
