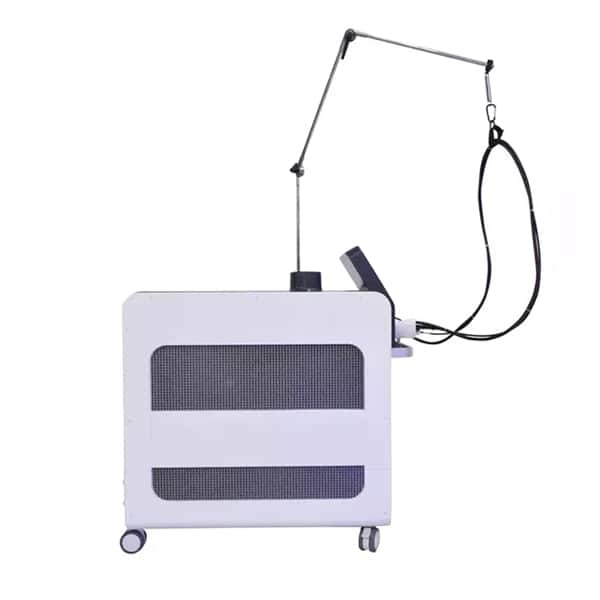

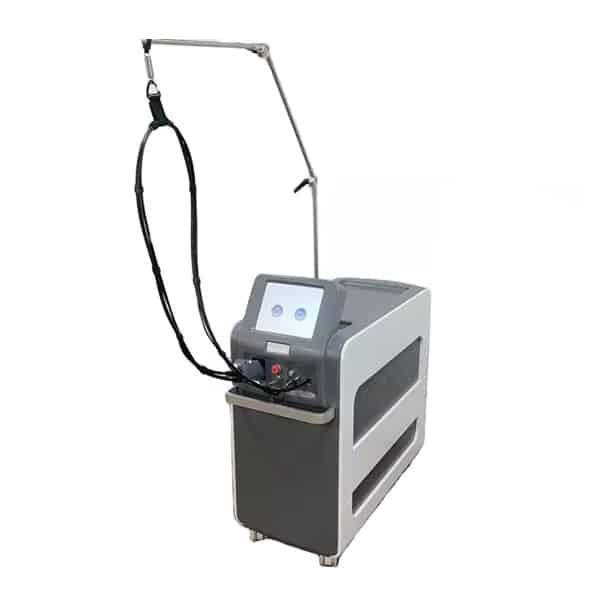

Long Pulse ND YAG Laser Machine

Treatment: Hair Removal,

1064nm Long Pulse Nd: YAG Laser Hair Removal Machine is an innovative technology for hair removal and vascular lesions. The spot size can be adjusted between 3-10mm to meet all treatment area requirements. The probe is cooled by a semiconductor, the supercooling protects the epidermis from being injured.

It is a solid-state laser system with long pulse duration, high efficiency and strong output energy with 1064 nm laser, long pulse Nd: YAG laser can remove full body any unwanted hair, for example, hairline, hair around the lip area, beard, armpit, arms, legs, breast and bikini area.

  • 1064nm ND YAG laser is the only wavelength for skin type V or VI hair removal.
  • Safe for dark or black skin and efficient for all hair types.
  • 10.4’’ TFT LCD touchscreen
  • Import optical fiber, high efficiency
  • 100V to 240V voltage range, suitable for requirements all over the world
  • Painless and permanent hair removal
  • Big spot size and fast treatment.
  • Import generator, long lifetime.
  • Unique design, OEM/ODM requirements accepted
  • Professional factory, support selling only kits (without machine case) for foreign factories.

Contact Us
long-pulse-nd-yag-laser-machine-user-manual Download

We can offer the OEM/ODM services of our products. The product can be customized according to your personalized requirements, including the brand, label, painting colors, and packing box. Please offer your design documents or tell us your ideas and our R&D team will do the rest.

  • principle
  • Video
  • datasheet
  • application
  • FAQ

What Is A Long Pulse Laser Hair Removal Machine?

Long pulse laser machine use 1064nm wavelength for hair removal. 1064nm is the safest wavelength for hair removal especially for dark and black skin. Due to the 1064nm wavelength could penetrate deeper to the skin than other wavelength, it will not burn the surface of the skin ever for black peron. Long pulse Nd: YAG laser machine equips delicate fiber handpiece, which can emit 1064nm long pulse wavelength laser precisely. This 1064nm wavelength laser reach skin tissues depth of dermal layer, selectively works on target area such as melanin of hair follicle, epidermal and dermal pigmentation into the skin, surface and deep skin infections, acne scars, vascular lesions, etc. Due to its adjustable big spot, it brings high work efficiency for hair removal and skin issues. Currently it’s widely used in clinical medical and beauty fields.

How Does Long Pulse ND Laser Hair Removal Machine Works?

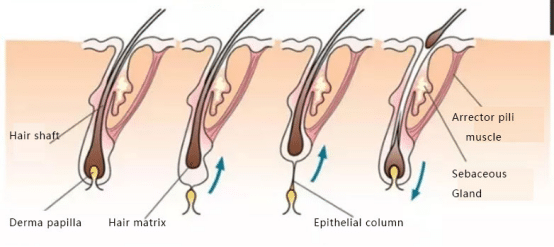

1064nm long pulse ND YAG laser is selectively absorbed by the deeper levels of the dermis and allows for the treatment of deeper vascular lesions like telangiectasias, hemangiomas and leg veins.

The 1064nm laser energy is delivered using long pulses which are converted into heat within the tissue. The warmth impacts the vasculature of the lesions. Additionally, the ND: YAG laser can treat at a more superficial level, by heating the subcutaneous skin (in a non-ablative manner), so it stimulates neo collagenases which improves the looks of facial wrinkles.

The ND: YAG Laser operates at a way higher wavelength than other lasers used for hair removal which suggests that it’s been CE approved to be used on individuals with tanned and ethnic skin. Therefore, long pulse ND: YAG Laser is the best laser hair removal machine for dark skin.

Working Principle

  1. Selective absorption–Long pulse 1064nm laser irradiated onto the skin, pigment particles in the skin (such as melanin in various pigmentation spots such as freckles, sunspots, melasma, etc.) selectively absorb the energy of the laser. With this character, long pulse laser break pigment particles into smaller pieces. With human body immune system and metabolism, they are drained out. Simultaneously hemoglobin in dilated capillaries also has a high absorption rate for specific wavelengths of the laser.
  2. Photothermal effect–10600nm laser causes the temperature of the target tissue to rapidly increase. Then high temperature will decompose and break down pigment into smaller particles, which are then gradually metabolized and excreted by the body’s immune system, thereby achieving the effect of removing spots. For abnormally dilated capillaries, high temperatures can cause hemoglobin to coagulate, seal blood vessels, and improve the problem of red blood streaks.
  3. Optomechanical effect–Under high-energy laser irradiation, the target tissue may generate small explosive forces, further damaging pigment particles or abnormal vascular structures.

Why Long Pulse Nd Yag Laser?

1064nm Long pulse Nd Yag laser is the only technology for hair removal on black or dark skin, the treatment is safe and effective.

  • Permanent hair removal
  • Safe for dark or black skin
  • Low investment, high profit.
  • Wide range application, not only hair removal surrounding tissues.
  • Pain-free hair removal
  • Fast treatment time

Technology Behind Long Pulse Laser

Long Pulse Technology

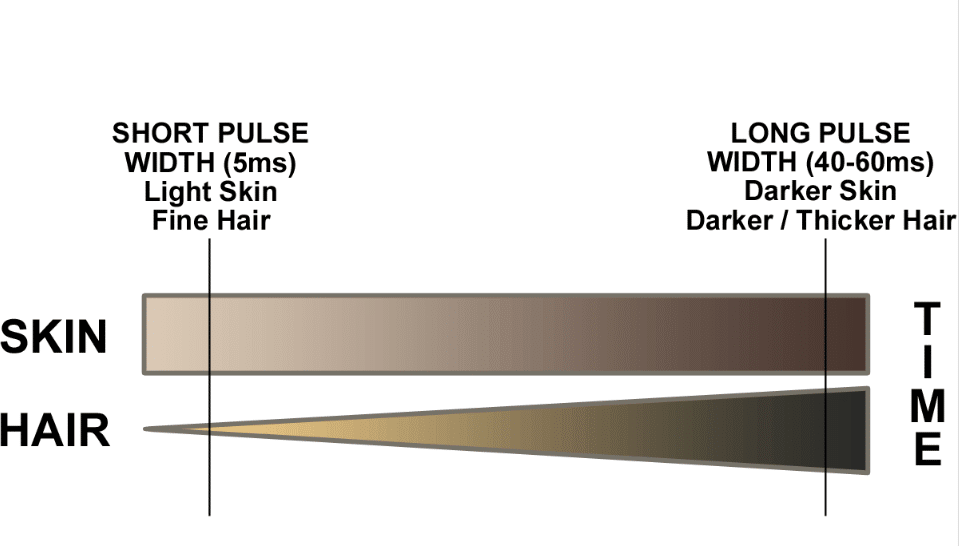

Long pulse width: Compared with short pulse lasers, the pulse duration of long pulse 1064nm lasers is longer. This long pulse can slowly release laser energy into the target tissue over a longer period of time, reducing the instantaneous energy peak and minimizing the risk of mechanical damage to the skin. Meanwhile, long pulses can better heat target tissues, such as deep blood vessels or pigment particles, to achieve effective therapeutic temperatures without causing excessive damage to surrounding tissues.

Gentle heating effect: The gentle heating effect generated by long pulse lasers helps stimulate collagen regeneration and remodeling in the skin. To some extent, it can improve the texture and elasticity of the skin, reduce aging phenomena such as wrinkles.

Cooling technology:In order to further protect the skin and reduce discomfort and the risk of thermal damage during laser treatment, the long pulse 1064nm laser beauty device is usually equipped with a cooling system. Common cooling methods include contact cooling, air cooling, and water cooling. The cooling system cools the skin before, during, and after laser emission, reducing thermal irritation to the skin and improving the comfort and safety of treatment.

Product name Long pulse ND YAG laser machine
Technology Long pulse laser
Display 10.4 TFT true color touch screen
Frequency 0.5-5Hz
Wavelength 1064nm
Spot size 3mm-10mm adjustable
Cooling system Air cooling + Water cooling
Laser transmission High-power Biquartz Optical Fiber ( 0.9mm)
Pulse width 5ms – 40ms
Indicator 650nm diode laser
Energy density 1-110J/cm
Voltage 100V-240V, 50Hz/60Hz
Packing size 55cm * 75cm * 125cm
Gross weight 80KG

Spare Parts List

NO. SPARE PARTS Quantity (pcs)
1 Host 1

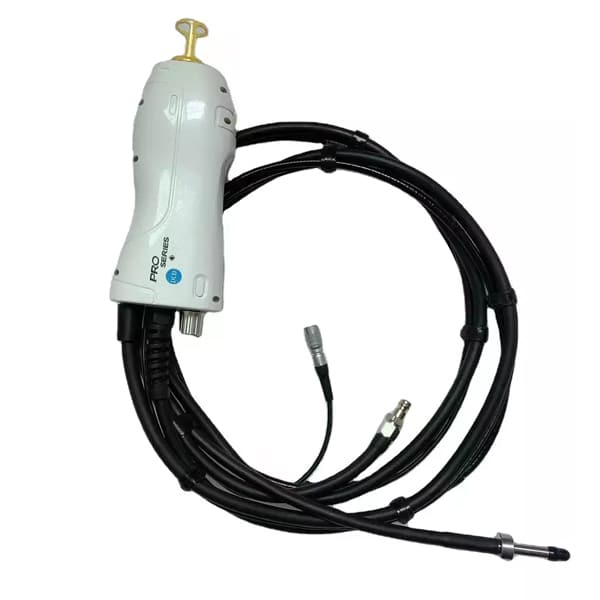

2 Handpiece 1
3 Power supply line 1
4 Handpiece holder 1
5 Funnel 1
6 Fuse 10
7 Screw driver 1
8 User manual 1

Application

  • Permanent hair removal
  • Vascular treatments
  • Hemangioma removal
  • Blood vein removal
  • Cure ringworm on the nails
  • Skin rejuvenation

Nd: YAG laser is a solid-state laser capable of producing a near-infrared wavelength that penetrates deep into the skin and is readily absorbed by hemoglobin and melanin chromophores.

Meantime the laser could heat the deep hair follicles while not damaging the superficial skin tissue, so it’s a most ideal choice for dark skin, especially the type IV-VI.

Yes, Long pulse laser treatment is safe. To achieve the best results and avoid adverse effects it is necessary to adjust treatment settings according to the individual patient’s skin reaction.

4 to 6 treatments, 28 days for intervals between 2 sessions.

Hair removal, vascular lesions treatments and nail lesions.
